1.Highly durable materials resistant to corrosion, vibration,  thermal variation, and outdoor weather conditions.

2.Metal clamshell connectors for all diameters are stronger
   and more durable versus polymer fittings.

3.Unique grab ring design (20-50mm) and lugged ring (63
   -200mm) allows for zero risk of disconnection.

3.Patented active concentric seals provide leak free performance,
   even in high vibration applications. Seal lifespan is double that of industry competitors.

1.Most of the manufacturers use the cheap carbon stell pipe for the compressed
air transmission, ignoring the oxidation after the pipe rust. Iron(Iron rust) will
damage the precision pneumatic tools, air cylinder and the pneumatic valves.
In many times, we will adopt the F.R.L to prevent the hazardous solid particles
but do remember these particles will also increase the pressure drop of the F.R.L
and largely waste the energy consequently.

2.AIRPIPE guarantee the clean air quality from the air treatment equipment to the
air point use, will not cause secondary pollution in the transmission process, avoid
the risk of pollution in the time flies.

3.Clean air system protect the low stream equipments and products quality, avoid
to install the filter in front of the compressed air use, prolong the life span of the piping system

1.The smooth interior design and high-flow connectors ensures a constant
    supply of clean air at a reduced pressure drop, resulting in significant energy
    savings.

2.Guaranteed leak-free performance and superior longevity versus traditional pipe systems.


AIRpipe, saving cost of your plant!

Lightweight, save labor cost;

Excellent sealing performance without risk of leakage;

Clean pipeline inner, low pressure drop;

Modular installation, reduce maintenance cost.

01/ 02

Grab Ring Clamping Style Connection

AIRpipe the fourth-generation pipe joint design is use the pipe clamp, sealing ring and convex pipe as a whole parts, forming hoop type of pipeline connection, which achieves quick fit with good sealing effect. Compared to the old line, O type sealing ring, the forth-generation of sealing ring upgrade to surface contact sealing, its performance become more reliable and life time is one time more than line type sealing.

DN20-50mm

1.Metal clamshell union connector, quick install & reassembly;
2.Grab ring with surface contact, no shrinking on inner diameter;
3.Surface contact, active concentric sealing, leak free;
4.Superior reliability & longevity, 20 years life.

02/ 02

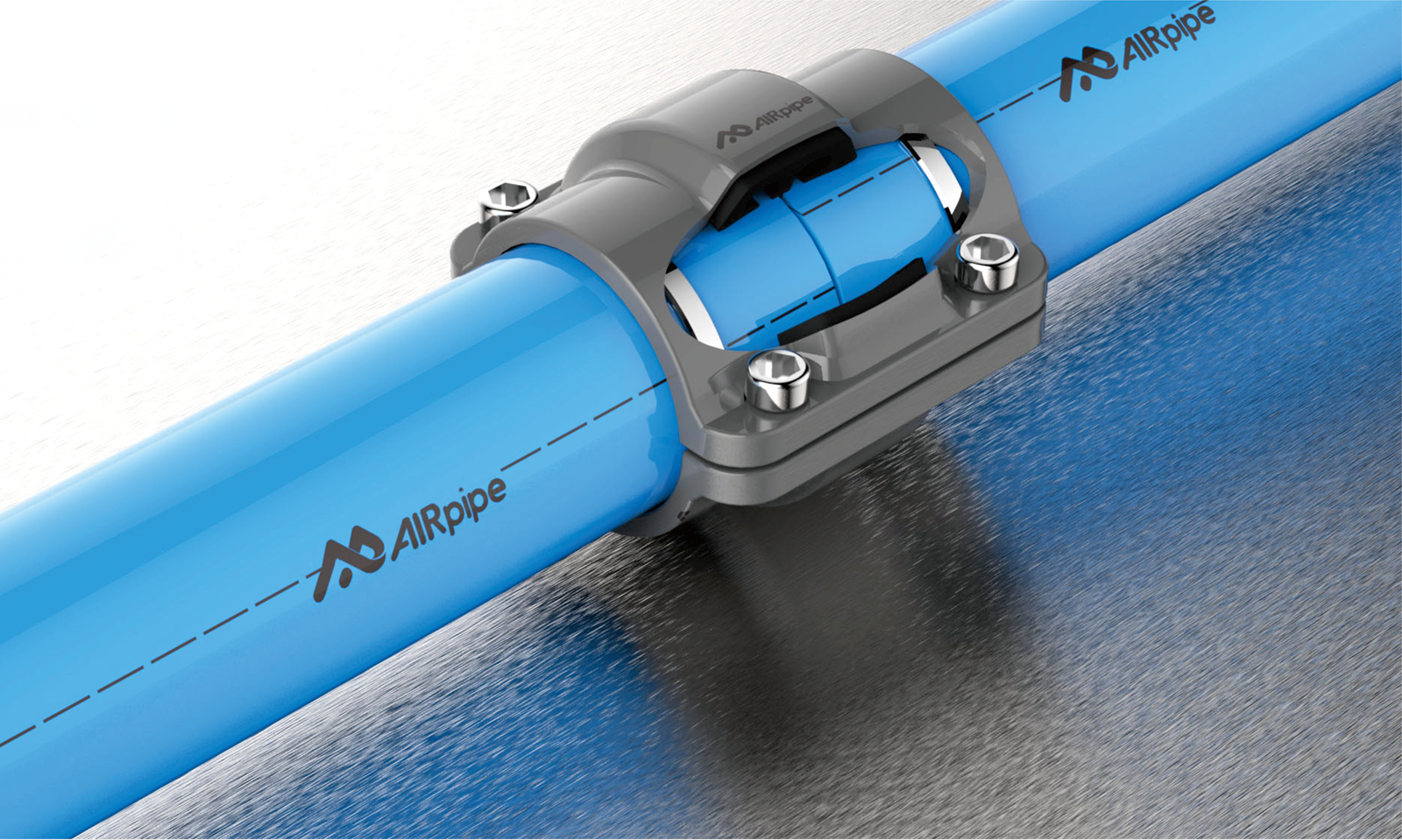

Lugged Ring Clamping Style Connection

AIRpipe the fourth-generation big pipe joint design is use the pipe clamp, sealing ring and convex pipe as a whole parts, forming hoop type of pipeline connection, which achieves quick fit with good sealing effect. Compared to the old line, O type sealing ring, the forth-generation of sealing ring upgrade to surface contact sealing, its performance become more reliable and life time is one time more than line type sealing.

DN63-200mm

1.Metal clamshell union connector, quick install & reassembly;
2.Convex ring, no shrinking on inner diameter;
3.Surface contact, active concentric sealing, leak free;
4.Superior reliability & longevity, 20 years life.
